Compared to the original Pelago Stavanger, new model has a lot more features from the look to the technical specifications. Stavanger’s size range has broaden a lot and now riders from 146cm to approximately 210cm can enjoy this bike without a problem.
Stavanger frameset comes with a new selection of features, but also a new colorway and decals. The design of the bike is timeless – just like any other Pelago bike.
The new Pelago Stavanger is updated by adding features we thought were missing in the frames of Stavanger Outback and Stavanger Commuter. With wide range of sizes (from 146cm to 210cm riders), well thought details, multipurpose geometry and multifunctional features, Stavanger is your choice. Multifunctional features include great tire clearance, great fender clearance, dropper post ready, carbon fork capability and Di2 ready – just to name a few things.
New Stavanger frameset comes also with thru axles as we moved on from quick release with this model. Tapered headtube allows you to add carbon fork easily and great selection of different kinds of mounting points will keep your water bottles, racks and fenders in the right place. The rigid CrMo frame offers plenty of options for customization.
Key Features
• F/R 12 mm thru axles
• Tapered head tube for steel & carbon forks
• Minimized toe-overlap
• Adoptable for 700c and 650B wheels
• Oversize double butted Cr-Mo tubing for rigidity
• Bottom bracket remains BSA
• Lots of mounts for racks, bags, bottles, fenders, etc
• Dropper post & Di2 ready

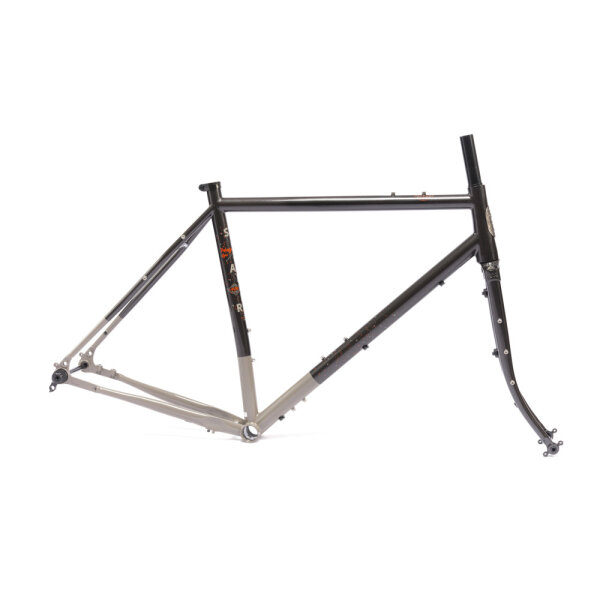

FRAME: Double butted, oversize, 4130 Cr-Mo tubing, TIG-welded
FORK: Casted Crown 4130 Cr-Mo, 58 mm rake
BOTTOM BRACKET: 68mm BSA
BRAKES: Flat Mount, up to 160mm rotors
GEARING: 1X / 2X (2X compatible with Gravel/Road Wide chain line and max 48T chainring)
SEAT POST: 27,2 mm w/ incl. shim
HEADSET: Top EC34 Bottom EC44, Not included, Headset specs here
ACCESSORIES: Carriers front and rear, frame lock, lights, grips, basket
TIRE CLEARENCE: 45-622 / 50-584 With fenders, 50-622 / 57-584 Without fenders
AXLES: Rear 142/12 mm thru axle, Front 100/12 mm thru axle
BRAZE-ONS: Bottle mounts on ST, 2x DT & fork, fenders, racks, light cable routing
WEIGHT: Frame 2,64 kg (size 54), Fork 1,2 kg
